Features

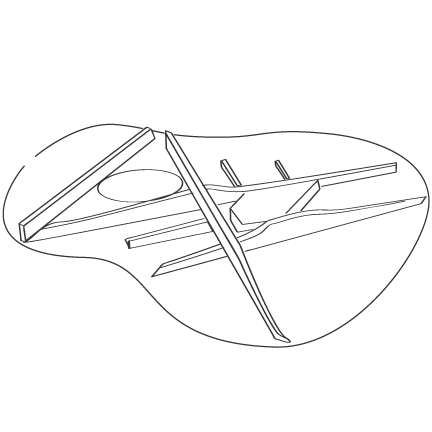

1. ADIRONDACK SPRUCE BRACING

The bracing for the new Art & Lutherie guitars is quarter-sawn Adirondack spruce, scalloped and carved to conform exactly to the curvature of the tops. The strength and lightweight qualities of Adirondack Spruce make for ideal bracing material. It provides the strength needed to resist string tension without weighing down the top, allowing it to be more responsive and vibrate freely.

2. SELECT PRESSURE TESTED SOLID TOPS

A guitar produces sound as a result of the vibration of its strings. What's not so obvious is the role that the guitar top plays in amplifying these vibrations. In fact, the vibration of the top is one of the most important factors in a guitar's sound. Solid top guitars offer richer sound and wider dynamic range. All Art & Lutherie guitars are made with select pressure tested solid tops. Each solid top is pressure tested to ensure its highest level of rigidity and stiffness along with maximum harmonic vibration. This benefits the overall tone, projection and resonance which in turn benefits the player and increases the lifespan of the guitar. The tight, straight grain in this wood produces a unique combination of strength and flexibility. The top is strong enough—in the direction of the grain—to withstand the pull of the strings, while at the same time it's flexible enough—across the grain—to vibrate freely.

3. AGING

A solid top vibrates much more freely than a laminated top. This results in richer tone, better dynamic range and better balance of tone. Not only does a solid top sound better initially, over time the vibrations from playing the guitar result in the top vibrating more and more freely. This phenomenon is called 'aging' which means that the more the guitar is played, the better the guitar will sound. It is important to remember in order for a guitar to age it must be played. A guitar left in its case for 5 years will get older, but it will not 'age'.

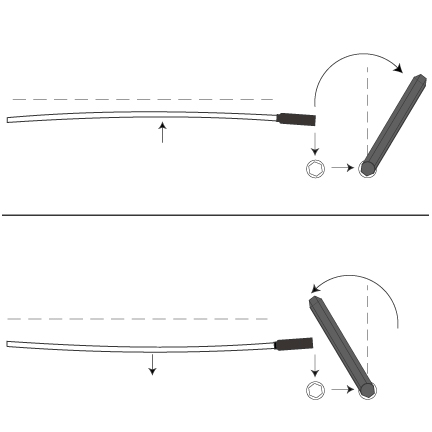

4. DOUBLE FUNCTION TRUSS SYSTEM

Most guitars employ an adjustable metal rod inside the neck called a truss rod. The truss rod is typically used to straighten the neck when it becomes slightly bowed from string tension and changes in humidity. In the event of a neck becoming back-bowed the traditional fix is to loosen the truss rod and allow the string tension to pull the neck back to its ideal form. Unfortunately this doesn’t always work which is why we adapted a Double Function truss rod in Art & Lutherie necks. The rod bends in both directions, which provides unprecedented control over the neck whether it is under-bowed or over-bowed.

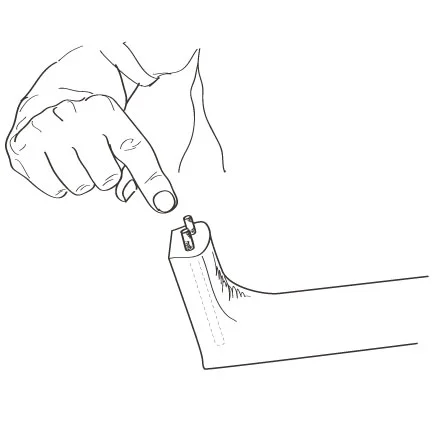

5. THE HEEL

Did you ever notice that a guitar that sounds perfectly in tune needs to be re-tuned slightly when passed from one player to another? This has to do with the fact that different players place varying amounts of weight and pressure on the neck and this affects tuning. Years ago we discovered that this problem could be alleviated by inserting maple dowels through the heel of the neck. This reinforcement makes the neck several times stronger.

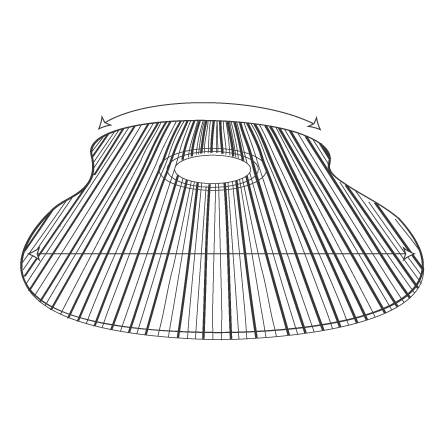

6. THE COMPOUND CURVED TOP

The guitar top is the part of the instrument that most affects the sound. Slightly arching the top above the sound hole resists downward pressure created by the fingerboard and increases the structural integrity of the top and allows for the use of a thinner and more lightly braced top. The compound curve top produces excellent stability in the upper part of the guitar top and the power & projection made possible by leaving the top flat below the sound hole. This area around the bridge is the most active part of the top in regards to vibration.

7. BOOKMATCHED

A top starts as a single piece of wood, which is sliced open—like a book—and then glued together. This technique is called 'bookmatching' and results in an even grain pattern across the top of the guitar.


8. NECK PITCH

In order to enjoy all of the advantages of a well-crafted neck, a great deal of care must be given when joining it to the guitar body. The angle of a guitar’s neck attachment—often called 'neck pitch'—plays a crucial role in the instrument’s tone. Simply put; if the neck is too far back the guitar will lose its bass and sound tinny. If the neck angle is too far forward, the guitar will lose its high frequency response and sound muddy. The Art & Lutherie neck attachment system insures consistent neck pitch. It also produces the added advantage of a superior neck/body energy transfer because the neck is attached to the body with a clean wood-to-wood connection. There is no glue to impede the vibration between the heel of the neck and the guitar's body.

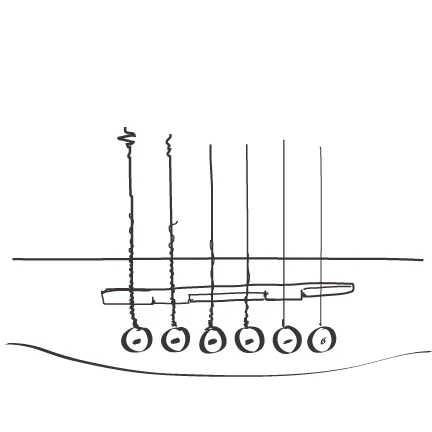

9. COMPENSATED SADDLE

Art & Lutherie guitars feature Tusq nuts and saddles by Graphtech. The fully compensated saddle helps Art & Lutherie  guitars to play beautifully in-tune all over the neck.

10. REVERSE HEADSTOCK

Each Art & Lutherie neck starts out as a single piece of Silver Leaf Maple. The wood is cut at a 45 degree angle after which the top piece - the Headstock - is glued back on with the grain reversed. This is an essential step in the process for creating incredibly stable necks.

11. THE INTEGRATED SET NECK

Comfort, sound, and stability, are the three key ingredients that we want in a guitar neck. The Integrated Set Neck system allows for more consistent and stable action while significantly reducing warping and twisting of the neck, largely attributed to changes in climate.
